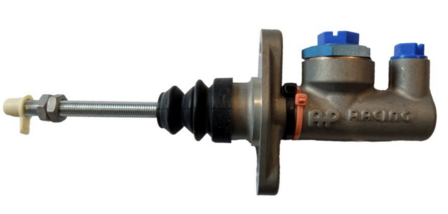

CP2623 Type
A lightweight compact forged bodied master cylinder suitable for all brake and clutch applications especially where space is restricted.
Features:
- Forged Aluminium Alloy Body.
- 50g weight saving over cast version
- Short travel to cut-off.
- Non Captive Cylinders available.
- Hydraulic threads are imperial.
| Weight |
CP2623-88 to -94 = 0.300g (.66lbs)
CP26223-95 & -96 = 340g (.750lbs)
|
| Full Stroke |
25.4mm (1.00") |
| Travel To Cut-Off |
Short - 0.68 to 1.09mm (0.27 to 0.43") |
| Inlet Hydraulic Thread |
7/16" x 20UNF |
| Outlet Hydraulic Thread |
3/8" x 24UNF |
| Push Rod Threads Available |
- PRM = M8 x 1.25mm- PRT = 5/16" UNF |
| Push Rod Length from Mounting Flange |
PRM065 - 65mm (2.55")
PRM088 - 88mm (3.46")
PRM/PRT115 - 115mm (4.53")
PRM/PRT160 - 160mm (6.30")Other Pushrod Lengths available. Contact Technical Department for more information. |
| Bore Sizes Available |
Part Numbers |
| 14mm |
CP2623-88PRM115 / CP2623-88PRM160
CP2623-88PRT115 / CP2623-88PRT160 |
| 15mm |
CP2623-89PRM088 / CP2623-89PRM115 /
CP2623-89PRM160
CP2623-89PRT115 / CP2623-89PRT160 |
| 15.9mm (.625") 5/8" |
CP2623-90PRM065 / CP2623-90PRM088
CP2623-90PRM115 / CP2623-90PRM160
CP2623-90PRT115 / CP2623-90PRT160 |
| 16.8mm |
CP2623-905PRM088 / CP2623-905PRM115 /
CP2623-905PRM160
CP2623-905PRT115 / CP2623-905PRT160 |
| 17.8mm (.70") |
CP2623-91PRM065 / CP2623-91PRM088
CP2623-91PRM115 / CP2623-91PRM160
CP2623-91PRT115 / CP2623-91PRT160 |
| 19.1mm (.75") 3/4" |
CP2623-92PRM065 / CP2623-92PRM088
CP2623-92PRM115 / CP2623-92PRM160
CP2623-92PRT115 / CP2623-92PRT160 |
| 20.6mm (.812") 13/16" |
CP2623-93PRM065 / CP2623-93PRM088
CP2623-93PRM115 / CP2623-93PRM160
CP2623-93PRT115 / CP2623-93PRT160 |
| 22.2mm (.875") 7/8" |
CP2623-94PRM065 / CP2623-94PRM088
CP2623-94PRM115 / CP2623-94PRM160
CP2623-94PRT115 / CP2623-94PRT160 |
| 23.8mm (.937") 15/16" |
CP2623-95PRM065 / CP2623-95PRM088
CP2623-95PRM115 / CP2623-95PRM160
CP2623-95PRT115 / CP2623-95PRT160 |
| 25.4mm (1.00") |
CP2623-96PRM065 / CP2623-96PRM088
CP2623-96PRM115 / CP2623-96PRM160
CP2623-96PRT115 / CP2623-96PRT160 |
